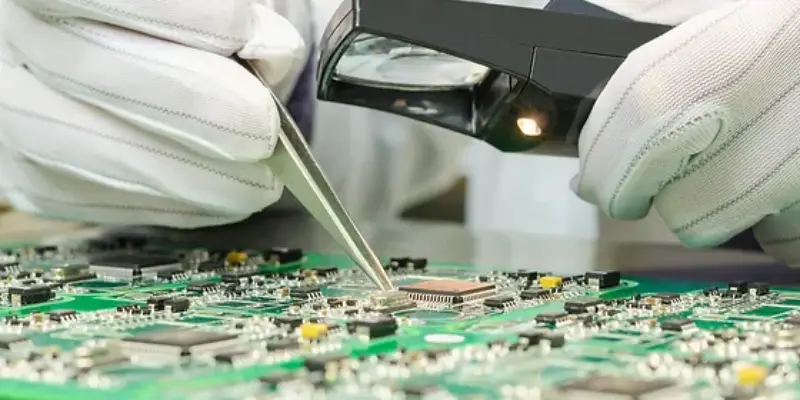

How to Repair Circuit Boards?Issuing time:2023-11-30 19:45 s Step-by-step
Before commencing the PCB repair, it is crucial to prepare all the tools and materials needed. This proactive step ensures a smooth and uninterrupted repair process. By having everything readily available, you can avoid any unnecessary delays or interruptions.
Use a screwdriver or knife to carefully detach the component from the circuit board. This step should be done before attempting to desolder any remaining solder joints. In case the pad is damaged or contains excessive solder, carefully utilize sandpaper to eliminate the undesired material. Exercise caution and avoid applying excessive pressure to prevent any additional damage to the PCB.
It is important to clean the track to ensure proper adhesion and a solid connection for the new component or pad. First, use a cotton swab soaked in rubbing alcohol to eliminate any residue present on the track. Then, employ a craft knife with caution to carefully eliminate any damaged sections of the track. Last, mark the end of the cut track using a pen. This marking will serve as a guide for placing the new component or pad accurately.
Once you have ensured the cleanliness of the track, proceed with placing the copper tape over it. This step is essential to establish a strong connection for the new component or pad. Begin by cutting a piece of copper tape that is slightly longer than the track itself. Carefully position the tape directly over the track, ensuring full coverage. Aligning the ends of the tape precisely with the edges of the circuit board. This ensures a secure and reliable connection for the new component or pad.
Using a soldering gun, apply a small quantity of solder to a pad and heat it until it melts. Next, gently press the tip of the soldering gun against the copper tape, ensuring it remains in position until the solder cools down and creates a strong connection. Repeat this procedure on the remaining pad, makings sure both joints are properly soldered.
Begin by using a sharp knife to remove any debris or obstructions from the hole, ensuring it is clean and free from any dirt or leftover solder. Next, take a cotton swab dipped in rubbing alcohol and carefully clean the through-hole, removing any remaining contaminants. Finally, resize the hole to match the size of the component lead using a paper clip or a similar tool, gradually widening it until it securely accommodates the lead.
To solder the new component onto the PCB, carefully insert its lead into the through-hole for a secure fit. Flip the PCB to access the soldering side, then apply solder to one pad using a soldering gun, melting it for bonding. Connect the lead by touching the soldering gun’s tip to the pad, holding until the solder cools and forms a strong bond. Repeat the process on the other pad, applying solder, heating, and connecting the lead until a secure bond is formed.
The last step to repair circuit boards needs to be done with care. Utilize tools like a craft knife to remove the additional tape surrounding the repair. Be mindful not to cut or damage any of the tracks or pads on the PCB while trimming. This ensures a clean and tidy appearance while maintaining the integrity of the circuitry. |
