What is a Box Build Assembly?

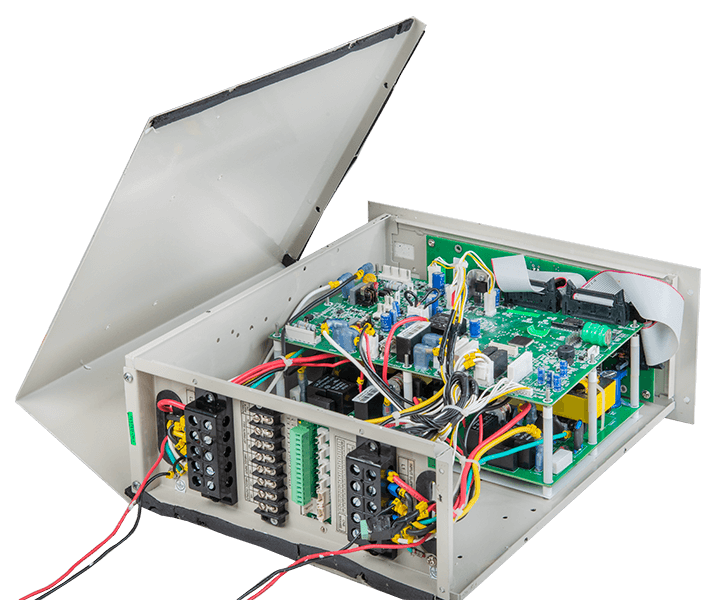

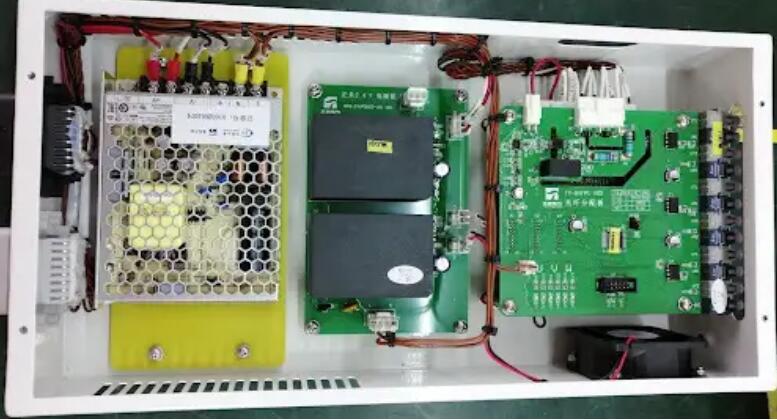

Box build assembly refers to the process of assembling, integrating, and testing various electronic components and modules into a fully functional product inside an enclosure or “box”. It involves taking printed circuit boards loaded with components (known as PCB assemblies), interconnecting them with wiring harnesses, and adding in power supplies, connectors, electromechanical parts like switches and sensors, and other hardware.

Box build assembly consists of the following key steps:

1.Kitting -Gathering together all the required materials and parts for each assembly. This includes PCBs, cables, accessories, enclosures, screws/fasteners, etc.

2.Sub-assembly – Assembling smaller modules and components like power supplies, drives, and wire harnesses.

3.PCB Assembly – Mounting PCBs and other electronics into the enclosure using standoffs, screws, or adhesives. Interconnecting PCBs with cables and wires.

Integration – Adding accessories like brackets, handles, and keypads to the enclosure.

4.Testing – Running quality assurance tests on the fully assembled unit. Testing for functionality, safety, and regulatory compliance.

5.Packaging – Adding final touches like user manuals, packaging, and labeling to complete the product.

The complexity of the box build process depends on factors like the number of parts, enclosure design, component density, and the production volume.

In summary, if you want to receive a ready-to-use assembly from your manufacturer, and you want to cut down on vendor logistics, then a box build assembly service might be for you. Depending on the capabilities of the manufacturer and their vendor partners, you could have multiple options for enclosures, ranging from simpler plastic enclosures to custom sheet metal enclosures. It’s also possible to work with a 3rd party enclosure design and production facility that can deliver the custom enclosure to your box build assembly house, and the assembler will do the integration.

Based on the costs involved and the level of automation involved in the box build, this route can be very useful for moderate volume production or short runs that will not go to mass market. A box build is also easy to prototype on your own and transition into production, and the tooling cost is extremely low compared to injection molded plastic or extruded aluminum enclosure manufacturing.
